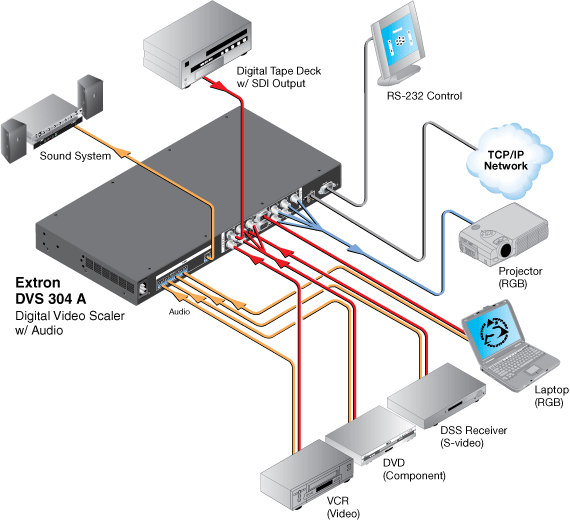

[8668]EXTRON DVS 304 A (음성 추가) [가격문의]
스   펙 : 60-736-01 Four Input Video and RGB Scaler With Audio Switching
제조사 : Extron (익스트론)
수   량 : 개
판매가 : 품절
적립금 : 0 원
100000이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.
장바구니담기 바로주문하기
이전화면
새 페이지 1
DVS 304 Series Digital Video Scalers
Video input
Number/signal type 1 (RGBHV, RGBS, RGsB) pass-through, RGBHV, RGBS, RGsB, RGBcvS, component video, S-video, composite video
1 composite video, S-video, component video (Y, R-Y, B-Y)
1 S-video, 1 SDI (optional, DVS 304D only)
1 composite video
Connectors (1) 15-pin HD female: RGBHV, RGBS, RGBcvS, component video, S-video, composite video
3 BNC female: component video, S-video, composite video
1 BNC female: SDI (DVS 304D, DVS 304AD only)
(1) 4-pin mini DIN female: S-video
1 BNC female: composite video
Nominal level 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum/maximum levels Analog: 0.0 V to 1.0 Vp-p with no offset
Impedance 75 ohms
Horizontal frequency 15 kHz to 100 kHz
Vertical frequency 50 Hz to 120 Hz
Resolution range 640x480 to 1600x1200 including tri-level sync inputs for 480p, 720p, 1080i, and 1080p
Return loss <-30 dB @ 5 MHz
DC offset (max. allowable) 1.5 V
Video processing
Decoder 9 bit digital
Digital sampling 24 bit, 8 bits per color; 13.5 MHz standard
Colors 16.78 million
Video output
Number/signal type 2 scaled or pass-through RGBHV, RGBS, RGsB or
scaled component video (Y, R-Y, B-Y)
Connectors 5 female BNC
1 female 15-pin HD
Nominal level 1 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
Minimum/maximum levels 0.0 V to 0.7 Vp-p
Impedance 75 ohms
Scaled resolutions 640x4801,2,3,4,5,6, 800x6001,2,3,4,5,6, 852x4801,2,3,4,5, 1024x7681,2,3,4, 1024x8521,2,3,4, 1024x10241,2,3, 1280x7681,2,3,4, 1280x10241,2,3, 1360x7651,2,3, 1365x7681,2,3, 1365x10241,2, 1366x7681,2,3, 1400x10501,2, 1600x12001,2, HDTV 480p2, 576p1,5, 720p1,2, 1080i1,2, and 1080p1,2
1 = at 50 Hz 2 = at 60 Hz 3 = at 72 Hz 4 = at 96 Hz 5 = 100 Hz 6 = 120 Hz
Sync
Input type (RGBHV, RGBS, RGsB) pass-through, RGBHV, RGBS, RGsB, RGBcvS
Output type RGBHV, RGBS, RGsB, and component video tri-level
Standards NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level 0 V to 1.0 Vp-p
Output level TTL: 5.0 Vp-p, unterminated
Input impedance 75 ohms
Output impedance 75 ohms
Max input voltage 5 Vp-p
Max. propagation delay 20 ns
Polarity Positive or negative (selectable)
Audio — DVS 304 A, DVS 304 AD
Gain Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response 20 Hz to 20 kHz, ±0.05 dB
THD + Noise 0.03% @ 1 kHz at nominal level, 0 dB gain
S/N >90 dB at maximum output (unweighted)
Crosstalk <-103 dB, wideband, @ 1 kHz (20 Hz to 20 kHz), fully loaded
Stereo channel separation >80 dB @ 1 kHz
CMRR >75 dB @ 20 Hz to 20 kHz
Audio input — DVS 304 A, DVS 304 AD
Number/signal type 4 stereo, balanced/unbalanced
Connectors (4) 3.5 mm captive screw connector, 5 pole
Impedance >18k ohms unbalanced/balanced, DC coupled
Nominal level +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Maximum level +18 dBu, (balanced or unbalanced) at 1%THD+N
Input gain adjustment –15 dB to +9 dB, adjustable per input
NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output — DVS 304 A, DVS 304 AD
Number/signal type 1 stereo, balanced/unbalanced
Connectors (1) 3.5 mm captive screw connector, 5 pole
Impedance 50 ohms unbalanced, 100 ohms balanced
Gain error ±0.1 dB channel to channel
Maximum level (Hi-Z) >+21 dBu, balanced or unbalanced at 1% THD+N
Maximum level (600 ohm) >+15 dBm, balanced or unbalanced at 1% THD+N
Output volume range 0 to 100 (-52 dB to 0 dB) in 0.5 dB increments from steps 4 to 100, 1 dB increment from step 0 to 3)
Control/remote — decoder/scaler
Serial control port RS-232, 9-pin female D connector
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configurations 1 = input 1 select
2 = TX
3 = RX
4 = input 2 select
5 = GND
6 = input 3 select
7 = input 4 select
8 = n/a
9 = hardwired IR
Ethernet control port 1 RJ-45 female connector
Ethernet data rate 10/100Base-T, half/full duplex with autodetect
Ethernet protocol ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, SMTP
Contact closure 9-pin female D connector (same as RS-232 connector)
Contact closure pin configurations See pins 1, 4, 5, 6, and 7 above
IR controller module Extron IR 901 (optional)
Program control Extron's control/configuration program for Windows®
Extron's Simple Instruction Set (SIS™)
Microsoft® Internet Explorer, Telnet
General
Power 100VAC to 240VAC, 50/60 Hz, 30 watts, internal, autoswitchable
Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Rack mount
DVS 304, DVS 304D Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01.
Also furniture mountable with an optional under-desk mounting kit, MBU 125, #70‑077‑01; or a through-desk mounting kit, MBD 129, #70-077-02.
DVS 304A, DVS 304AD Yes, with included brackets.
Enclosure type Metal
Enclosure dimensions
DVS 304, DVS 304D 1.75" H x 8.75" W x 10.5" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 26.7 cm D
(Depth excludes connectors and knobs.)
DVS 304A, DVS 304AD 1.75" H x 17.5" W x 10.5" D (1U high, full rack wide)
4.4 cm H x 44.4 cm W x 26.7 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)
Product weight
DVS 304, DVS 304D 3.3 lbs (1.5 kg)
DVS 304A 6.5 lbs (2.9 kg)
DVS 304AD 6.8 lbs (3.1 kg)
Shipping weight
DVS 304, DVS 304D 6 lbs (3 kg)
DVS 304A, DVS 304AD 11 lbs (5 kg)
DIM weight (DVS 304A, DVS 304AD)
12 lbs (6 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Listings UL, CUL
Compliances CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF 30,000 hours
Warranty 3 years parts and labor
