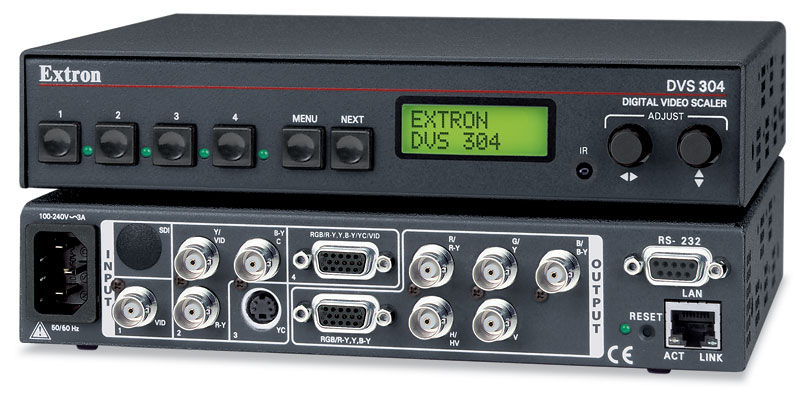

[8666]EXTRON DVS 304 [가격문의]
스   펙 : 60-736-01 Four Input Video and RGB Scaler
제조사 : Extron (익스트론)
수   량 :
판매가 : 품절
적립금 : 0 원
100000이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.
장바구니담기 바로주문하기
이전화면
새 페이지 1

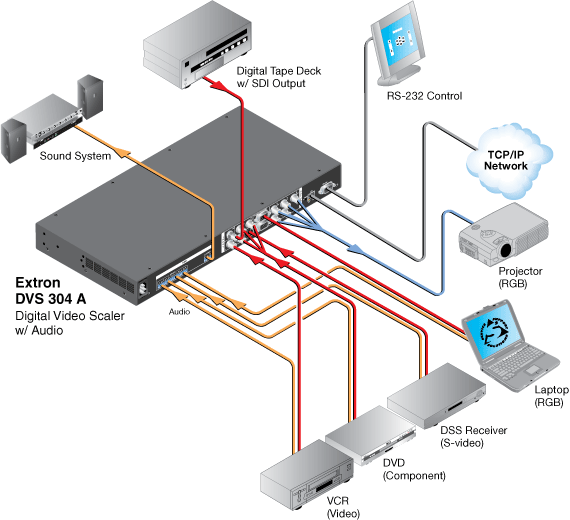

DVS 304 Series Digital Video Scalers
Video input
  Number/signal type    1 (RGBHV, RGBS, RGsB) pass-through, RGBHV, RGBS, RGsB, RGBcvS, component video, S-video, composite video
1 composite video, S-video, component video (Y, R-Y, B-Y)
1 S-video, 1 SDI (optional, DVS 304D only)
1 composite video
  Connectors    (1) 15-pin HD female: RGBHV, RGBS, RGBcvS, component video, S-video, composite video
3 BNC female: component video, S-video, composite video
1 BNC female: SDI (DVS 304D, DVS 304AD only)
(1) 4-pin mini DIN female: S-video
1 BNC female: composite video
  Nominal level   1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
  Minimum/maximum levels    Analog: 0.0 V to 1.0 Vp-p with no offset
  Impedance    75 ohms
  Horizontal frequency   15 kHz to 100 kHz
  Vertical frequency   50 Hz to 120 Hz
  Resolution range   640x480 to 1600x1200 including tri-level sync inputs for 480p, 720p, 1080i, and 1080p
  Return loss   <-30 dB @ 5 MHz
  DC offset (max. allowable)   1.5 V
Video processing
  Decoder   9 bit digital
  Digital sampling   24 bit, 8 bits per color; 13.5 MHz standard
  Colors   16.78 million
Video output
  Number/signal type    2 scaled or pass-through RGBHV, RGBS, RGsB or
scaled component video (Y, R-Y, B-Y)
  Connectors    5 female BNC
1 female 15-pin HD
  Nominal level   1 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
  Minimum/maximum levels    0.0 V to 0.7 Vp-p
  Impedance   75 ohms
  Scaled resolutions   640x4801,2,3,4,5,6, 800x6001,2,3,4,5,6, 852x4801,2,3,4,5, 1024x7681,2,3,4, 1024x8521,2,3,4, 1024x10241,2,3, 1280x7681,2,3,4, 1280x10241,2,3, 1360x7651,2,3, 1365x7681,2,3, 1365x10241,2, 1366x7681,2,3, 1400x10501,2, 1600x12001,2, HDTV 480p2, 576p1,5, 720p1,2, 1080i1,2, and 1080p1,2
1 = at 50 Hz  2 = at 60 Hz 3 = at 72 Hz 4 = at 96 Hz 5 = 100 Hz 6 = 120 Hz
Sync
  Input type   (RGBHV, RGBS, RGsB) pass-through, RGBHV, RGBS, RGsB, RGBcvS
  Output type   RGBHV, RGBS, RGsB, and component video tri-level
  Standards   NTSC 3.58, NTSC 4.43, PAL, SECAM
  Input level   0 V to 1.0 Vp-p
  Output level   TTL: 5.0 Vp-p, unterminated
  Input impedance   75 ohms
  Output impedance   75 ohms
  Max input voltage   5 Vp-p
  Max. propagation delay   20 ns
  Polarity   Positive or negative (selectable)
Audio — DVS 304 A, DVS 304 AD
  Gain   Unbalanced output: 0 dB; balanced output: +6 dB
  Frequency response   20 Hz to 20 kHz, ±0.05 dB
  THD + Noise   0.03% @ 1 kHz at nominal level, 0 dB gain
  S/N   >90 dB at maximum output (unweighted)
  Crosstalk   <-103 dB, wideband, @ 1 kHz (20 Hz to 20 kHz), fully loaded
  Stereo channel separation   >80 dB @ 1 kHz
  CMRR   >75 dB @ 20 Hz to 20 kHz
Audio input — DVS 304 A, DVS 304 AD
  Number/signal type   4 stereo, balanced/unbalanced
  Connectors   (4) 3.5 mm captive screw connector, 5 pole
  Impedance   >18k ohms unbalanced/balanced, DC coupled
  Nominal level   +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
  Maximum level   +18 dBu, (balanced or unbalanced) at 1%THD+N
  Input gain adjustment   –15 dB to +9 dB, adjustable per input
   NOTE    0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output — DVS 304 A, DVS 304 AD
  Number/signal type   1 stereo, balanced/unbalanced
  Connectors   (1) 3.5 mm captive screw connector, 5 pole
  Impedance   50 ohms unbalanced, 100 ohms balanced
  Gain error   ±0.1 dB channel to channel
  Maximum level (Hi-Z)   >+21 dBu, balanced or unbalanced at 1% THD+N
  Maximum level (600 ohm)   >+15 dBm, balanced or unbalanced at 1% THD+N
  Output volume range   0 to 100 (-52 dB to 0 dB) in 0.5 dB increments from steps 4 to 100, 1 dB increment from step 0 to 3)
Control/remote — decoder/scaler
  Serial control port   RS-232, 9-pin female D connector
  Baud rate and protocol   9600 baud, 8 data bits, 1 stop bit, no parity
  Serial control pin configurations   1 = input 1 select
2 = TX
3 = RX
4 = input 2 select
5 = GND
6 = input 3 select
7 = input 4 select
8 = n/a
9 = hardwired IR
  Ethernet control port   1 RJ-45 female connector
  Ethernet data rate   10/100Base-T, half/full duplex with autodetect
  Ethernet protocol   ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, SMTP
  Contact closure   9-pin female D connector (same as RS-232 connector)
  Contact closure pin configurations   See pins 1, 4, 5, 6, and 7 above
  IR controller module   Extron IR 901 (optional)
  Program control   Extron's control/configuration program for Windows®
Extron's Simple Instruction Set (SIS)
Microsoft® Internet Explorer, Telnet
General
  Power   100VAC to 240VAC, 50/60 Hz, 30 watts, internal, autoswitchable
  Temperature/humidity   Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
  Rack mount
        DVS 304, DVS 304D   Yes, with optional 1U rack shelf, part #60-190-01 or 60-604-01.
Also furniture mountable with an optional under-desk mounting kit, MBU 125, #70‑077‑01; or a through-desk mounting kit, MBD 129, #70-077-02.
        DVS 304A, DVS 304AD   Yes, with included brackets.
  Enclosure type   Metal
  Enclosure dimensions
        DVS 304, DVS 304D   1.75" H x 8.75" W x 10.5" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 26.7 cm D
(Depth excludes connectors and knobs.)
        DVS 304A, DVS 304AD   1.75" H x 17.5" W x 10.5" D (1U high, full rack wide)
4.4 cm H x 44.4 cm W x 26.7 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)
  Product weight
        DVS 304, DVS 304D   3.3 lbs (1.5 kg)
        DVS 304A   6.5 lbs (2.9 kg)
        DVS 304AD   6.8 lbs (3.1 kg)
  Shipping weight
        DVS 304, DVS 304D   6 lbs (3 kg)
        DVS 304A, DVS 304AD   11 lbs (5 kg)
  DIM weight (DVS 304A, DVS 304AD)
12 lbs (6 kg)
  Vibration   ISTA 1A in carton (International Safe Transit Association)
  Listings   UL, CUL
  Compliances   CE, FCC Class A, VCCI, AS/NZS, ICES
  MTBF   30,000 hours
  Warranty   3 years parts and labor
