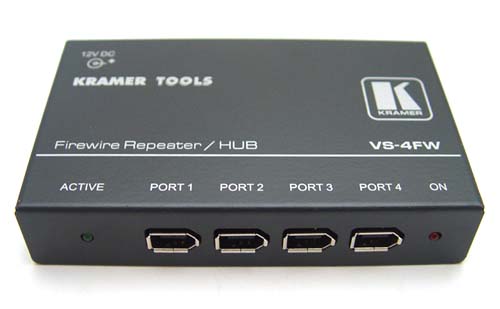

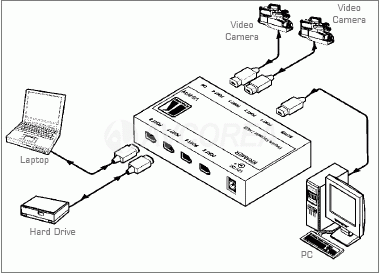

The Kramer VS-4FW is a four port Firewire repeater / hub for
any application where additional Firewire (IEEE 1394) ports are needed.
Several hubs may be cascaded to create up to a 63 port Firewire system. It
supports 100, 200, and 400 Mbps transfer rates, enabling high rate digital
video transfer, and it allows for "hot plugging". On all
its ports, the hub includes unique electronic surge protectors against
static and other pulse induced damages. The machine effectively extends
the standard 4.5 meter (15 feet) operation range of Firewire, even
doubling the range when using appropriate cabling. It is housed in a
Kramer Tools enclosure, and is fed from a 12VDC power supply
|
|
|
PORTS: |

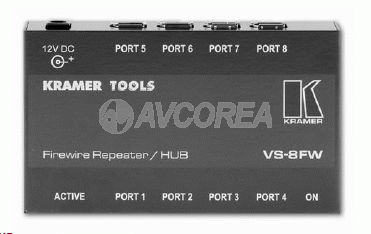

VS-4FW: Four 6-pin serial 1394 Ports VS-6FW:
Six 6-pin serial 1394 Ports VS-8FW: Eight 6-pin serial 1394 Ports |
TRANSFER RATE: |
100/200/400 Mbps |
STANDARDS: |
Fully supports the provisions of the IEEE
1394-1995 Standard for High Performance Serial Bus and the P1394a
Supplement; Fully interoperable with FireWire¢â and i.LINK¢â
implementation of IEEE Std 1394; Fully compliant with OpenHCI
requirements; Provides Six P1394a Fully Compliant Cable Ports at
100/200/400 Megabits per Second (Mbits/s); Full P1394a support
includes: Connection Debounce, Arbitrated Short Reset, Multispeed
Concatenation, Arbitration Acceleration, Fly-By Concatenation,
Port Disable/Suspend/Resume; Extended Resume Signaling for
Compatibility with Legacy DV Devices; ESD protection for
high-speed data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV
(contact), IEC 61000-4-5 (Lightning) 12A (8/20us), and IEC
61000-4-4 (EFT) 40A (5/50ns) |
POWER SOURCE: |
VS-4FW: 12 VDC, 200mA VS-6FW: 12 VDC, 250mA
VS-8FW: 12 VDC, 300mA |
DIMENSIONS: |
12cm x 7.5cm x 2.5cm (4.7" x 2.95"
x 0.98", W, D, H) |
WEIGHT: |
0.3 kg. (0.67 lbs.) approx. |

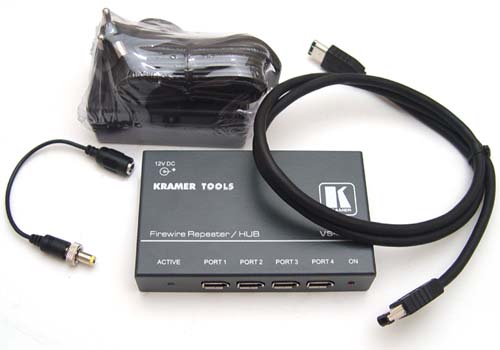

ACCESSORIES: |
12VDC power supply , mounting bracket, one 6
pin to 6 pin connector cable |
|
* ±¸¼ºÇ°
- 1394 Çãºê º»Ã¼ 1°³
- 1394 ÄÉÀ̺í 1M 1°³
- 1394 ¾Æ´äŸ+¿¬°á¾Æ´äŸ 1°³
|
