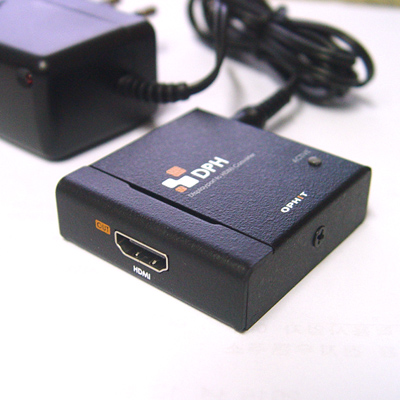

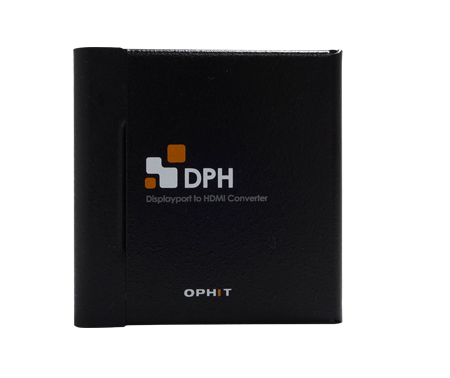

DPH is a DisplayPort 1.2a to HDMI 2.0 Converter which receives both video and audio form DisplayPort and converts to HDMI output. DPH supports HDCP 1.4 and HDCP 2.2 repeater for downstream sink with an embedded key.
Features
• Compliant with DisplayPort Specification 1.2a
• Compliant with HDMI Specification 2.0
• Supports full link training
• Supports multiple color formats
- DP : RGB 6/8/10/12 bpc
YCbCr 4:4:4, YCbCr 4:2:0 8/10/12 bpc
- HDMI : RGB 8/10/12 bpc
YCbCr 4:4:4: YCbCr 4:2:2 and YCbCr 4:2:0 8/10/12 bpc
• Supports up to 8-channel LPCM, compressed audio (AC-3, DTS) and HBR audio formats
• Supports up to 192kHz audio frame rate and up to 24-bit audio sample size
• Content protection
- Supports HDCP 1.4 repeater with on-chip keys
- Supports HDCP 2.2 repeater with on-chip keys
※ It works only with the supplied DP Cable.
※ We guarantee the working only when using a HDMI 2.0 supported cable.
※ When DPH output the odd screen then reconnect the cable
|
|
• Signal
- Input : DISPLAYPORT 1.2a
- Output : HDMI 2.0
• Video Bandwidth
- Input : 5.4Gbps
- Output : 5.94Gbps
• Module Size : 53.0mm(W) x 16.0mm(D) x 52.4mm(H)
• Electrical Connector

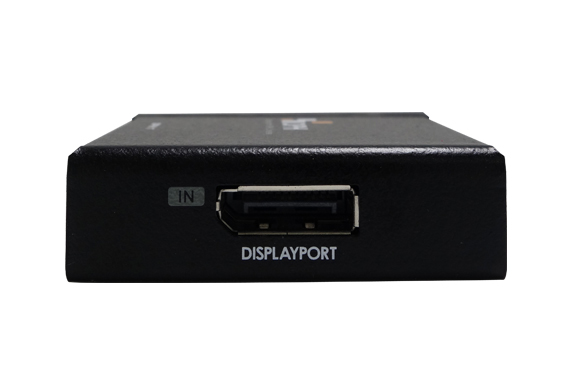

- Input : DisplayPort Female Connector

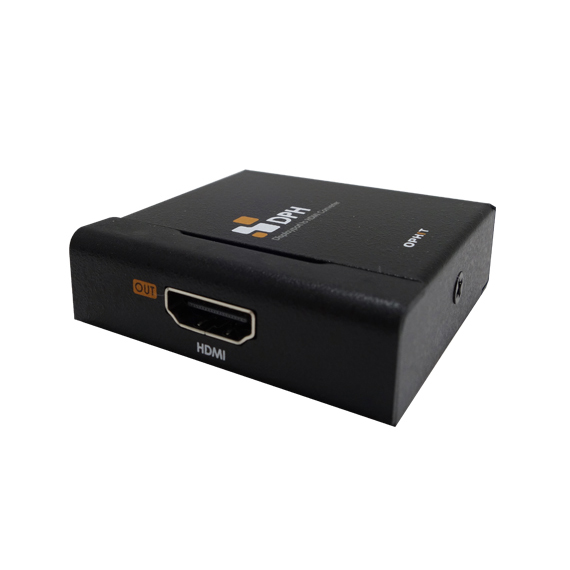

- Output : HDMI Female Connector
• Applied DisplayPort Cable : DisplayPort 30cm Cable(Power connected Cable)
• Maximum Supporting Resolution : UHD(3840x2160@60Hz / 4096x2160@60Hz)
• External Power (DisplayPort Pin 20) : (Min) 3.3V / 500m |
|

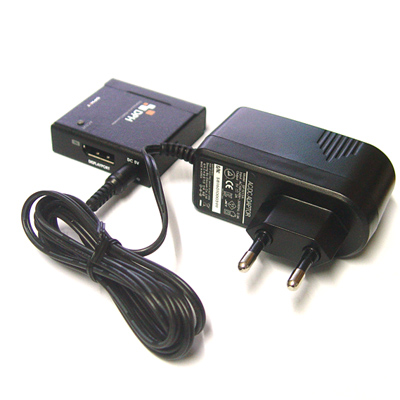

Package
• DPH
• 1(ONE) Power Adapter
• User’s manual
|
맥북프로=>UHD TV에서 오피트 DPH 연결시 3840*2160 60hz Real 4K 가능
맥북 MINI DP 포트에서 몰렉스 DP케이블+MINI DP 젠더 연결후
DPH 거쳐서 HDMI로 모니터 출력시 4K 60Hz 완벽출력
(테스트 환경에 따라서 지원 유무가 다를수 있습니다)
시스템 환경
소스:맥북 프로 2015년
디스플레이:LG 55인치 UHD TV
케이블:몰렉스 DP케이블,일반형 DP TO MINI DP 변환젠더,HDMI 1.4V 케이블
(테스트 환경에 따라서 지원 유무가 다를수 있습니다)
|
