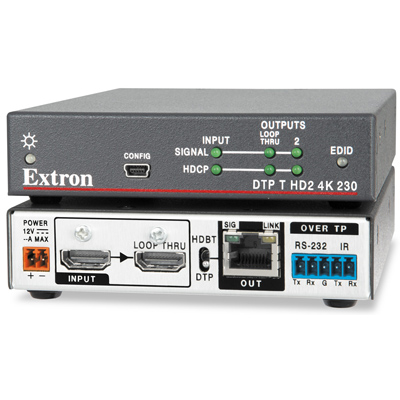

[20029]EXTRON HDMI 2K,4K UTP ·£ Àü¼Û±â [¼Û½Å±â][ DTP T HD2 4K 230 ][°¡°Ý¹®ÀÇ]
½º   Æå : ¹ßÁÖÀÏ·Î 7~10ÀÏ °øÈÞÀÏ Á¦¿Ü ¼Ò¿äµÊ
Á¦Á¶»ç : EXTRON
¼ö   ·® : °³
ÆǸŰ¡ : 0 ¿ø
Àû¸³±Ý : 0 ¿ø
100000ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û ³³Ç°/³³±â °ßÀû¿äûÀº ÀüÈ­Áֽñ⠹ٶø´Ï´Ù.
Àå¹Ù±¸´Ï´ã±â ¹Ù·ÎÁÖ¹®Çϱâ
ÀÌÀüÈ­¸é

ȣȯµÇ´Â ¼ö½Å±â
  DTP R DP 4K 230 DisplayPort Twisted Pair Extender
  DTP DVI 4K 230 D Rx DVI Twisted Pair Extender - Decora Wallplate
  DTP DVI 4K 230 Rx DVI Twisted Pair Extender
  DTP HDMI 4K 230 D Rx HDMI Twisted Pair Extender - Decora Wallplate
  DTP HDMI 4K 230 Rx HDMI Twisted Pair Extender
ȣȯµÇ´Â ½ºÀ§Ã³¿Í ¸ÅÆ®¸¯½º ½ºÀ§Ã³
  DTP CrossPoint 84 8x4 Scaling Presentation Matrix Switchers with DTP Extension
  IN1608 Eight Input HDCP-Compliant Scaling Presentation Switcher with DTP Extension
  MPS 602 Media Presentation Switcher with DTP Extension



DTP T HD2 4K 230
  HDMI Tx - 230 feet (70 m)  60-1491-12




















DTP T HD2 4K 330  HDMI Tx - 330 feet (100 m)  60-1491-52


DTP T HD2 4K 230
 NOTE     *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.
Video
   Maximum data rate  10.2 Gbps (3.4 Gbps per color)
   Maximum pixel clock  300 MHz
   Resolution range  Up to 2560x1600* @ 60Hz or 4K (4096x2160) @ 30 Hz,
UHD (3840x2160) @ 30 Hz, 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
(*Reduced blanking)
   Color bit depth  8, 10, or 12 bits — subject to the maximum data rate limit
   Formats  RGB and YCbCr digital video
   Standard  DVI 1.0, HDMI, HDCP, CEA-861E
Video input
   Number/signal type  1 single link HDMI (or DVI-D*)
   Connector  1 female 19-pin HDMI type A
   Input cable length  Up to 50' (15 m) with 225 MHz signal, 100' (30 m) with 165 MHz signal
Video output
   Number/signal type  1 single link HDMI (Loop Thru)
1 DTP 230 (Output)
Interconnection between transmitter and receiver
   Connector  1 RJ-45 jack
   Termination standard  TIA/EIA T568B
   Signal transmission distance
      1080p @ 60 Hz  Up to 230' (70 m) using shielded twisted pair (STP) cable or XTP DTP 24 cable
      2560x1600 @ 60 Hz  Up to 130' (40 m) using STP cable or XTP DTP 24 cable
      4K/UHD @ 30Hz and 60 Hz  Up to 130' (40 m) using STP cable or XTP DTP 24 cable
   Cable requirements  Solid conductor, 24 AWG or better
   Cable recommendations  400 MHz bandwidth, STP (shielded twisted pair)
    NOTE     Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance.
    NOTE     Output mode signaling:
DTP:             HDMI with embedded audio, analog audio, RS-232 and IR, and remote power
HDBaseT:   HDMI with embedded audio plus RS-232 and IR
Control/remote
   USB control port  1 front panel female mini USB B
   USB standards  USB 2.0, low speed
   Program control  Extron Simple Instruction Set (SIS¢â), Extron Product Configuration Software (PCS)
Communications — external device (RS-232/IR over TP)
    NOTE     Protocol is mirrored between the connected DTP 230 Rx or DTP 330 Rx endpoints and the "Over TP" ports on the
DTP T HD2 4K series. Signals from a control device pass into each "Over TP" port, are embedded with the DTP signal, and sent to the individual DTP 230 Rx or DTP 330 Rx endpoints for control of remote sink or source devices. The "Over TP" ports are simply pass-through connections to DTP endpoints. There is no RS-232 or IR insertion from any DTP T HD2 4K control port to the "Over TP" ports.
   Serial control port  RS-232 via (1) 3.5 mm, 5-pole captive screw connector
(connector is shared with IR control ports)
   Baud rate and protocol  300 to 38.4k baud, 8 or 7 data bits, 1 or 2 stop bits, non-parity (default), even or odd parity
   Serial control pin configuration  Captive screw connectors: 1 = Tx, 2 = Rx, 3 = Gnd
   IR pass-through control port  (1) 3.5 mm, 5-pole captive screw connector
(connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz
   IR control pin configuration  3 = Gnd, 4 = IR Tx, 5 = IR Rx
General
   Power supply  External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts
   Power consumption
      Device  TBD
      Device and power supply  TBD
   Temperature/humidity  Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
   Cooling  Convection, with vents
   Thermal dissipation
      Device  TBD
      Device and power supply  TBD
   Rack mount  Yes
   Enclosure type  Metal
   Enclosure dimensions  1.0" H x 4.3" W x 6.0" D (1" high, 1/4 rack wide)
2.5 cm H x 10.9 cm W x 15.2 cm D (depth excludes connectors)
   Product weight  TBD
   Shipping weight  TBD
   Vibration  ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE**, C-tick, FCC Class A**, ICES, VCCI
    NOTE     **CE and FCC testing is conducted with STP cable.
   Warranty  3 years parts and labor
    NOTE     All nominal levels are at ¡¾10%.
    NOTE     Specifications are subject to change without notice.
DTP T HD2 4K 230 Application Diagram

Panel Drawing
