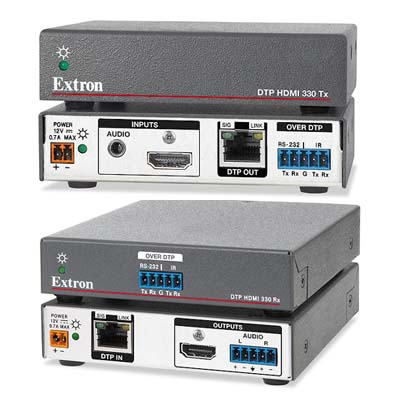

Video |
Maximum data rate |
6.75 Gbps (2.25 Gbps per color) |
Maximum pixel clock |
165 MHz |
Resolution range |
Up to 1920x1200 or 1080p @ 60 Hz; 8, 10, or 12 bit color depth |
Formats |
RGB and YCbCr digital video |
Standards |
DVI 1.0, HDMI, HDCP 1.1, CEA-861E |
|
Video input — transmitter |
Number/signal type |
1 single link HDMI (or DVI-D*) |
Connectors |
1 female HDMI type A |
|
Interconnection between transmitter and receiver |
Connectors |
1 female RJ-45 per unit |
Termination standards |
TIA/EIA T568B |
Signal transmission distance |
330' (100 m) using CAT 5e/6/7 UTP or STP cable (solid conductor 24 AWG or better) |
NOTE |
The use of shielded twisted pair cabling (STP) is strongly recommended for optimal performance. | |
|
Video output — receiver |
Number/signal type |
1 single link HDMI (or DVI-D*) |
Connectors |
1 female HDMI type A |
|
Audio |
Gain |
Unbalanced output: 0 dB; balanced output +6 dB |
Frequency response |
20 Hz to 20 kHz, ¡¾0.5 dB |
THD + Noise |
0.03% @ 20 Hz to 20 kHz at maximum output |
S/N |
>90 dB, at maximum output (15 dBu), balanced (unweighted) |
Stereo channel separation |
>80 dB @ 1 kHz to 20 kHz |
|
Audio input |
Number/signal type |
1 PC level stereo, unbalanced |
Connectors |
(1) 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) |
Impedance |
>10k ohms, DC coupled |
Nominal level |
-10 dBV (316 mVrms) |
Maximum level |
+6 dBV (unbalanced) |
NOTE |
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu | |
|
Audio output |
Number/signal type |
1 stereo (2 channel), balanced/unbalanced |
Connectors |
(1) 3.5 mm captive screw connector, 5 pole |
Impedance |
50 ohms unbalanced, 100 ohms balanced |
Gain error |
¡¾0.1 dB channel to channel |
Maximum level (600 ohm) |
>+11 dBu, balanced |
|
Control/remote — external device (pass-through, unidirectional or bidirectional) |
Serial control port input/output |
|
Transmitter |
RS-232 via (1) 3.5 mm, 5 pole captive screw connector for RS-232 control (¡¾5 V) (connector is shared with IR control port) |
Receiver |
1 set of proprietary signals on a female RJ-45 jack |
Serial control port output/input |
|
Transmitter |
1 set of proprietary signals on a female RJ-45 jack |
Receiver |
RS-232 via a 3.5 mm, 3 pole captive screw connector |
Baud rates |
Up to 115200 baud |
Protocol |
Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none |
Serial control pin configuration |
1 = Tx, 2 = Rx, 3 = GND |
IR control port |
(1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 60 kHz |
IR control pin configuration |
3 = GND, 4 = IR Tx, 5 = IR Rx |
|
General |
Power supply |
External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts |
Power consumption |
11.0 watts, 12 VDC, total, for both transmitter and receiver |
NOTE |
Each transmitter or receiver can be powered either locally by an external power supply or remotely by receiver or transmitter on the other end of the twisted pair cable. | |
Temperature/humidity |
Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing |
Cooling |
Convection, no vents |
Mounting |
Rack mount |
Yes, with optional 1U high rack shelf |
Furniture mount |
Yes, with optional under-desk mounting kit |
Enclosure type |
Metal |
Enclosure dimensions |
|
Transmitter |
1.0" H x 4.3" W x 3.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 7.6 cm D) (Depth excludes connectors.) |
Receiver |
1.0" H x 4.3" W x 6.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 15.2 cm D) (Depth excludes connectors.) |
Product weight |
|
Transmitter |
0.5 lbs (0.3 kg) |
Receiver |
1.0 lb (0.5 kg) |
Shipping weight |
3 lbs (2 kg) |
Vibration |
ISTA 1A in carton (International Safe Transit Association) |
Regulatory compliance |
|
Safety |
CE, c-UL, UL |
EMI/EMC |
CE**, C-tick, FCC Class A**, ICES, VCCI |
