[17008]EXTRON (UTP 최대 70미터) Twisted Pair Extender [ DTP HDMI 230 ] [가격문의]

스 펙 :	UTP 랜선 최대 70미터 전송가능 1920*1200 / 1080P
제조사 :	Extron [익스트론]
수 량 :	개
판매가 :	0 원
적립금 :	0 원

100000이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.

주요 특징

• Transmits HDMI plus control and analog audio over a single CAT 5-type cable

• Extends 1080p/60 Deep Color and 1920x1200 signals up to 230 feet (70 meters)

• Compatible with CAT 5 and CAT 6 twisted pair cable

• Extron strongly recommends using shielded twisted pair cabling for optimal performance

• Accepts additional analog stereo audio signals

• Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC

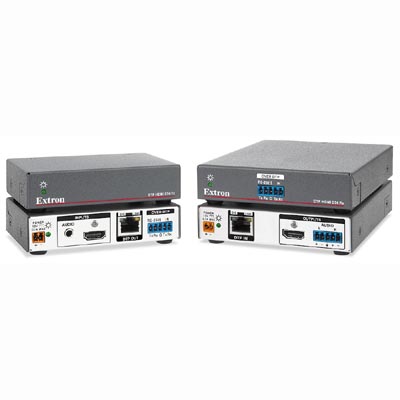

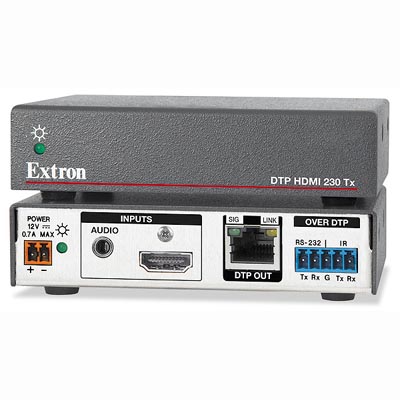

DTP HDMI 230 Tx HDMI Transmitter 60-1271-12

DTP HDMI 230 Rx HDMI Receiver 60-1271-13

특징

Transmits HDMI plus control and analog audio over a single CAT 5-type cable — The DTP HDMI 230 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.

Inputs: HDMI connector, captive screw connector, TRS audio connector - DTP HDMI 230 Tx

Outputs: HDMI connector, captive screw connector, captive screw connector for stereo audio - DTP HDMI 230 Rx

Extends 1080p/60 Deep Color and 1920x1200 signals up to 230 feet (70 meters) — The DTP HDMI 230 supports digital signal transmission up to 230 feet over a single twisted pair cable and maintains superior image quality at the highest resolutions.

Compatible with CAT 5 and CAT 6 twisted pair cable — The DTP HDMI 230 fully supports a maximum transmission distance of 230 feet (70 meters) for all compatible resolutions when used with CAT 6a, 24 AWG or better. When used with CAT 5 or CAT 6, 24 AWG or better, the maximum transmission distance is 197 feet (60 meters) for all compatible resolutions.

Extron strongly recommends using shielded twisted pair cabling for optimal performance

Accepts additional analog stereo audio signals — The DTP HDMI 230 accepts a direct analog audio connection from Blu-ray Disc players, laptops, or other devices with stereo output and digitizes them for simultaneous transmission over the same single twisted pair cable. The DTP HDMI 230 receiver can output balanced and unbalanced audio, allowing streamlined integration within an AV system.

Supported HDMI specification features include data rates up to 6.75 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC

HDCP compliant

Supports DDC transmission — DDC channels are actively buffered, allowing continuous communication between source and display.

Remote powering of transmitter or receiver — For simplified installation, only one power supply is necessary to power both devices.

LED indicator for signal presence and power — Provides visual indication of system status from transmitter and receiver locations for real-time feedback and monitoring of key performance parameters.

RJ-45 signal and link LED indicators for DTP port — Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.

1" (2.5 cm) high, quarter rack width metal enclosures — With low profile enclosures, both devices can be installed discreetly such as beneath a table or behind a flat-panel display.

Includes LockIt^® HDMI cable lacing brackets

Energy-efficient external universal power supply included with Tx models, part #70-775-01 — Provides worldwide compatibility, low power consumption, and reduced operating costs.

Product Diagram
