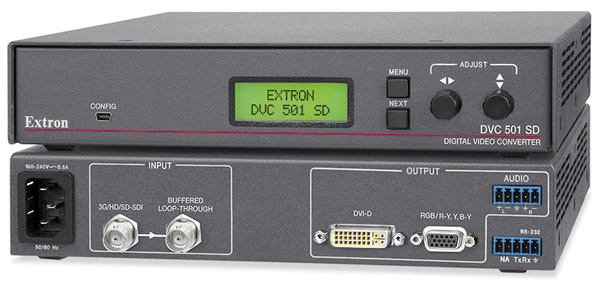

DVC 501 SD 3G-SDI to DVI/RGB/Component Converter 60-1033-01


The Extron DVC 501 SD converts SDI, HD-SDI, and 3G-SDI serial digital video signals to DVI-D and analog RGB or component video formats. It features automatic equalization of input signals, extraction of embedded AES3 audio, and RS-232 serial control. The DVC 501 SD is ideal for applications including television production, medical imaging, military simulation, houses of worship, and live events that require interfacing SDI signals from broadcast-type sources to professional / consumer-level displays and signal distribution systems that only accept DVI or analog signals. It is compliant with SMPTE 259M, 292M, 424M, and ITU digital video standards.

The DVC 501 SD accepts data rates from NTSC and PAL to HDTV 1080p/60. An input loop-through delivers reshaped and restored multi-rate SDI signals. The RGB output can be set for RGBHV, RGBS, and RGsB. Bi-level or tri-level sync can be selected when the unit is set for component video output.

Features

  • Accepts multi-rate SDI signals up to 2.97 Gbps — The DVC 501 SD accepts data rates from standard definition NTSC and PAL to HDTV 1080p/60. It complies with SMPTE 259M, 292M, 424M, and ITU digital video standards.
  • Simultaneous DVI-D and analog RGB / component video outputs — The DVC 501 SD offers high resolution digital and analog video outputs that allow for easy integration of multi-rate SDI signals into DVI or RGB-based AV devices and systems.
  • AES3 audio de-embedding — An embedded AES3 stereo audio stream can be extracted and then output from the DVC 501 SD. Audio output can be balanced or unbalanced, and adjusted for gain and attenuation.
  • Input equalization and reclocking on buffered output — The DVC 501 SD automatically equalizes incoming multi-rate SDI signals, and reshapes and restores the signals on the buffered output.
  • Analog RGB or component video output — The DVC 501 SD can be set to output analog RGB as RGBHV, RGBS, or RGsB, or component video as R-Y, B-Y, Y.
  • Internal test patterns for calibration and setup — Nine test patterns are available with the DVC 501 SD, including a crop pattern, color bars, and alternating pixels.
  • Output muting control — Provides the capability to mute the video and/or audio output.
  • RS-232 control — Using serial commands, the DVC 501 SD can be controlled and configured via the Extron Windows¢ç-based control program, or integrated into a control system. Extron products use the SIS¢â - Simple Instruction Set command protocol, a set of basic ASCII code commands that allow for quick and easy programming.
  • Front panel USB configuration port — Provides convenient access to the DVC 501 SD for setup, configuration, and firmware updates.
  • Front panel security lockout — This feature locks out all front panel functions except for input selection; all functions however, are available through RS-232 control.
  • Internal universal power supply — The 100-240 VAC, 50/60 Hz, international power supply provides worldwide power compatibility.

    DVC 501 SD
    Video
       Signal type  SDI, HD-SDI, and 3G-SDI digital video signals
       Data rates  270 Mbps, 1.485 Gbps, 2.970 Gbps
       Operation standards  SMPTE 259M-C, SMPTE 292M, SMPTE 424M
       Auto data rate lock  Yes
    Video input and loop through
       Number/signal type  1 SDI (SMPTE 259M-C, 270 Mbps), HD-SDI (SMPTE 292M, 1.485 Gbps), or 3G-SDI (SMPTE 424M, 2.97 Gbps) digital component video
       Connectors  1 female BNC, 1 female BNC loop-through
       Data rates  270 Mbps to 2.97 Gbps
       Nominal level  0.8 Vp-p
       Impedance  75 ohms
       Horizontal frequency  15 kHz to 100 kHz
       Vertical frequency  24 Hz to 60 Hz
       Resolution range  NTSC, PAL, 720p, 1080i, 1080p
       Return loss  <-15 dB @ 1 MHz to 1.5 GHz
       DC offset (max. allowable)  5 V
       Input cable equalization  Automatic for up to -30 dB of cable loss
          HD-SDI  120 m (400') using Extron RG6 cable
    90 m (300') using Extron RG59 cable
          SDI  150 m (500') using Extron RG6 cable
    120 m (400') using Extron RG59 cable
        NOTE     The transmission distance varies depending on the signal resolution and on the type of cable, graphics card, and display used in the system.
    Video processing
       Digital sampling  24 bit, 8 bits per color, 165 MHz standard
       Colors  16.78 million
    Video output
       Number/signal type  1 single link DVI-D
    1 RGB, YUV / YPbPr
       Connectors  1 female DVI-I
    1 female 15-pin HD
       Nominal level
          TMDS  1.0 Vp-p swing
          Analog  1 Vp-p for Y of component video
    0.7 Vp-p for RGB and for R-Y and B-Y of component video
       Impedance
          TMDS  100 ohms
          RGB  75 ohms
       Return loss  <-25 dB @ 100 MHz
       DC offset  ¡¾5 mV with input at 0 offset
    Sync
       Output type  RGBHV, RGBS, RGsB, component video (bi-level or tri-level)
       Output level  5.0 Vp-p for RGB
    0.6 Vp-p for component video tri-level sync
    0.3 Vp-p for component video bi-level sync
       Output impedance  75 ohms
       Output polarity  Positive or negative (selectable)
    Audio
       Frequency response  20 Hz to 20 kHz, ¡¾0.2 dB
       THD + Noise  0.05% @ 1 kHz at nominal level, 0 dB gain
       S/N  >100 dB at maximum output (unweighted)
       Stereo channel separation  >80 dB @ 1 kHz
    Audio input
       Number/signal type  1 SDI embedded audio (SMPTE 272M, SMPTE 299M)
       Connector  1 female BNC
       Adjustment range  -18 dB to 0 dB
    Audio output
       Number/signal type  1 stereo, balanced/unbalanced
       Connectors  (1) 3.5 mm captive screw connector, 5 pole
       Impedance  50 ohms unbalanced, 100 ohms balanced
       Gain error  ¡¾0.1 dB channel to channel
       Maximum level (Hi-Z)  +21 dBu, balanced, or +15 dBu, unbalanced, at 0.05% THD+N
    Control/remote  — decoder/scaler
       Serial control port  1 RS-232, 3.5 mm captive screw connector, 5 pole (uses 3 poles)
       Baud rate and protocol  9600 baud, 8 data bits, 1 stop bit, no parity
       Serial control pin configuration  3 = Tx, 4 = Rx, 5 = GND
       USB control ports  1 front panel female mini USB B
       USB standards  USB 2.0, low speed
       Program control  Extron Simple Instruction Set (SIS¢â)
    General
       Power supply  Internal
    Input: 100-240 VAC, 50-60 Hz
       Power consumption  12 watts
       Temperature/humidity  Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
    Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
       Cooling  Convection, sides to top
       Thermal dissipation  24 BTU/hr
       Mounting
          Rack mount  Yes, with optional 1U rack shelf
          Furniture mount  Yes, with optional through-desk mounting kit or under-desk mounting kit
       Enclosure type  Metal
       Enclosure dimensions  1.75" H x 8.75" W x 9.5" D (half rack wide)
    4.4 cm H x 22.2 cm W x 24.1 cm D
    (Depth excludes connectors and knobs.)
       Product weight  2.3 lbs (1.1 kg)
       Shipping weight  6 lbs (3 kg)
       Vibration  ISTA 1A in carton (International Safe Transit Association)
       Regulatory compliance
          Safety  CE, c-UL, UL
          EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
       MTBF  30,000 hours
       Warranty  3 years parts and labor
Product Diagram
