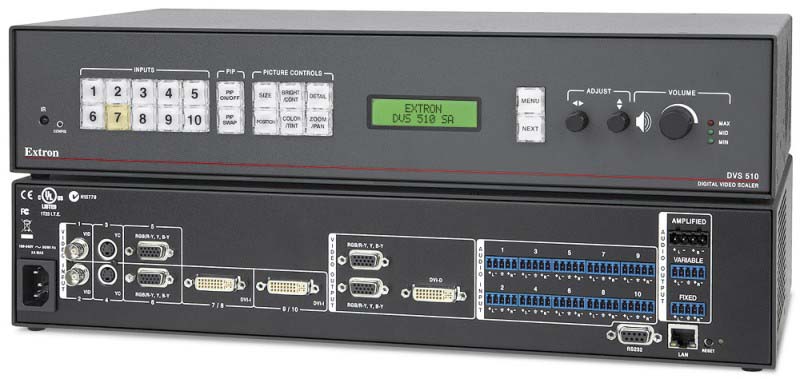

[15168]EXTRON DVS 510 SA [º¹ÇÕ´ÜÀÚ ½ºÄÉÀÏ·¯] [°¡°Ý¹®ÀÇ]
½º   Æå : 10 Input Scaling Presentation Switcher
Á¦Á¶»ç : Extron [ÀͽºÆ®·Ð]
¼ö   ·® : °³
ÆǸŰ¡ : 0 ¿ø
Àû¸³±Ý : 0 ¿ø
100000ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û ³³Ç°/³³±â °ßÀû¿äûÀº ÀüÈ­Áֽñ⠹ٶø´Ï´Ù.
Àå¹Ù±¸´Ï´ã±â ¹Ù·ÎÁÖ¹®Çϱâ
ÀÌÀüÈ­¸é

DVS 510 Variable Preamp Output - No Amplifier 60-835-01
DVS 510 SA 2x25 Watt Stereo Power Amplifier 60-835-02

DVS 510 Series
Video
Signal types and standards
Signal type Single-link DVI digital video signals are supported.
Digital video RGB digital video (DVI standards), actively buffered (supports all single link DVI standards from 640x480 @ 60 Hz to 1920x1200 @ 60 Hz computer video)
Digital audio Supports HDMI audio (if using an HDMI to DVI adapter) transmitted through the RGB and Y, Cr, Cb lines, actively buffered.
HDCP Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.3 standards
EDID and DDC Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
Standards DVI 1.0, HDMI 1.3, HDCP 1.1
Video input
Number/signal type 2 composite video
2 S-video
4 RGBHV, RGBS, and component video (interlaced, progressive, or HDTV)
2 DVI-D digital video (single link)
Connectors 2 female BNC (composite video)
2 female 4-pin mini DIN (S-video)
2 female 15-pin HD (RGB/component video)
2 female DVI-I (digital and analog signals are accepted)
Nominal level 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum/maximum levels 0 V to 1.0 Vp-p with no offset
Impedance 75 ohms
Horizontal frequency 24 kHz to 100 kHz
Vertical frequency 50 Hz to 120 Hz
Resolution range 640 x 480 to 1920 x 1200*, 480p, 576p, 720p, 1080i, and 1080p, sampled pixel for pixel
Higher resolutions are accepted and undersampled.
* Reduced blanking version
Return loss <-30 dB @ 5 MHz
DC offset (max. allowable) 0.5 V
Video processing
Decoder 10 bit digital
Digital sampling 30 bit, 10 bits per color; 165 MHz standard
Colors 1 billion
Video output
Number/signal type 1 scaled RGBHV, RGBS, RGsB; Y, R-Y, B-Y
Connectors 2 female 15-pin HD
1 female DVI-I (HDCP; only digital signal active)
Nominal level 1 Vp-p for Y of component video and for G of RGsB
0.7 Vp-p for RGB and for R-Y and B-Y of component video
Minimum/maximum levels 0 V to 0.7 Vp-p
Impedance 75 ohms
Vertical frequency 50 Hz, 60 Hz, or 75 Hz, depending on selected output resolution
Scaled resolution 640x4801,2,3, 800x6001,2,3, 852x4801,2,3, 1024x7681,2,3, 1024x8521,2,3, 1024x10241,2,3, 1280x7681,2, 1280x8001,2, 1280x10241,2,3, 1360x7651,2,3, 1360x7681,2,3, 1365x7681,2,3, 1366x7681,2,3, 1365x10241,2,3, 1400x10501,2, 1440x9001,2,3, 1600x12001,2, 1680x10501,2, 1920x12001,2, 2048x10801,2,4,5,6,7,8,9, 480p2,9, 576p1, 720p1,2,6,7,8,9, 1080i1,2,9, 1080p1,2,4,5,6,7,8,9
1 = at 50 Hz, 2 = at 60 Hz, 3 = at 75 Hz, 4 = at 23.98 Hz, 5 = at 24 Hz, 6 = at 25 Hz, 7 = at 29.97 Hz,
8 = at 30 Hz, 9 = at 59.94 Hz
Return loss -21 dB @ 5 MHz
DC offset ¡¾300 mV maximum with input at 0 offset
Sync
Input type RGBHV, RGBS, RGsB, bi-level or tri-level component video
Output type RGBHV, RGBS, RGsB; Y, R-Y, B-Y (bi-level or tri-level)
Input standards NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level 2.75 Vp-p to 5.0 Vp-p for RGBHV or RGBS
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB
Output level TTL: 5.0 Vp-p, unterminated
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB
Input impedance 75 ohms
Output impedance 75 ohms
Polarity Positive or negative (selectable)
Audio
Gain Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response Fix and variable: 20 Hz to 20 kHz, ¡¾0.5 dB
Direct (4/8 ohms): 20 Hz to 20 kHz, ¡¾1.0 dB
THD + Noise Power amp: 0.01% at 1 kHz at nominal level (1 watt, 8 ohms load)
Variable: <0.11% at 1 kHz, 20 kHz bandwidth
Fixed: <0.025% at 1 kHz, 20 kHz bandwidth
S/N Power amp: 72 dB at 20 to 20 kHz
Variable: 90 dB at rated maximum output
Fixed: 90 dB at rated maximum output
Crosstalk -80 dB at 1 kHz, fully loaded
Stereo channel separation 84 dB at 1 kHz
Bass ¡¾10 dB at 100 Hz
Treble ¡¾10 dB at 10 kHz
Audio input
Number/signal type 10 stereo, unbalanced
Connectors (10) 3.5 mm 5-pole captive screw connectors (stacked)
Impedance >10k ohms unbalanced, DC coupled
Nominal level +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
Maximum level +10.4 dBu, (unbalanced) at 1% THD+N
Input gain adjustment -12 dBu to +12 dBu, adjustable to input
NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output
Number/signal type 2 stereo or mono, balanced/unbalanced (1 fixed and 1 variable)
Connectors (2) 3.5 mm captive screw connectors, 5-pole
Impedance 50 ohms unbalanced, 100 ohms balanced
Gain error ¡¾0.1 dB channel to channel
Maximum level (Hi-Z) >+21 dBu, balanced at 1% THD+N
>+11 dBu, unbalanced at 1% THD+N
Maximum level (600 ohm) >+14 dBm, balanced at 1% THD+N
>+10 dBm, unbalanced at 1% THD+N
Audio output — amplified (optional)
Number/signal type 1 stereo or mono (2 channels total)
Connectors (1) 5 mm captive screw, 4-pole
Minimum load impedance 4 ohms
Continuous power with a full load At 2, 4, or 8 ohms: 25 watts (rms) per channel
Amplifier type Improved Class D
Damping factor >30 (with a 4 ohm load)
Control/remote — decoder/scaler
Serial control port 2 RS-232:
1 rear panel female 9-pin D connector
1 front panel 2.5 mm stereo mini jack
IR remote control IR 904 (optional)
30' maximum, 40 degrees off axis
General
Power 100 VAC to 240 VAC, 50-60 Hz, 30 watts, internal
Temperature/humidity Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
Operating: +32 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
Cooling Fan, right to left as viewed from front panel
Mounting
Rack mount Yes, with included brackets
Enclosure type Metal
Enclosure dimensions 3.5" H x 17.5" W x 9.4" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 23.9 cm D)
(Depth excludes connectors and knobs. Width excludes mounting brackets.)
Product weight 7.0 lbs (3.2 kg)
Shipping weight 10 lbs (5 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety CE, c-UL, UL
EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI
MTBF 30,000 hours
Warranty 3 years parts and labor
