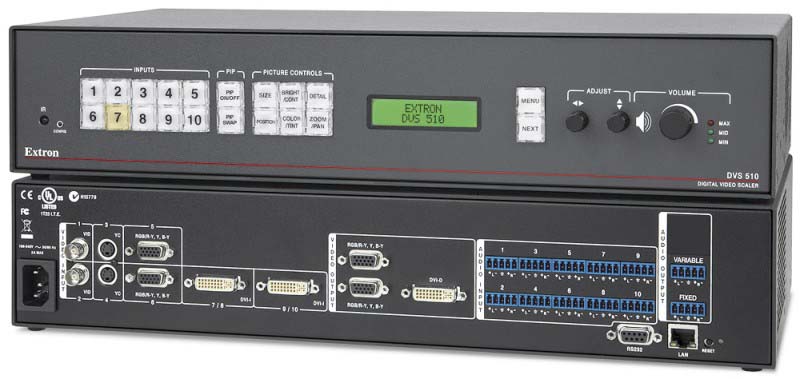

[15167]EXTRON DVS 510 [복합단자 스케일러] [가격문의]
스   펙 : 10 Input Scaling Presentation Switcher
제조사 : Extron [익스트론]
수   량 :
판매가 : 0 원
적립금 : 0 원
100000이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.
장바구니담기 바로주문하기
이전화면

DVS 510   Variable Preamp Output - No Amplifier   60-835-01
DVS 510 SA   2x25 Watt Stereo Power Amplifier   60-835-02

DVS 510 Series
Video
   Signal types and standards
      Signal type  Single-link DVI digital video signals are supported.
         Digital video  RGB digital video (DVI standards), actively buffered (supports all single link DVI standards from 640x480 @ 60 Hz to 1920x1200 @ 60 Hz computer video)
         Digital audio  Supports HDMI audio (if using an HDMI to DVI adapter) transmitted through the RGB and Y, Cr, Cb lines, actively buffered.
         HDCP  Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.3 standards
         EDID and DDC  Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered.
   Standards  DVI 1.0, HDMI 1.3, HDCP 1.1
Video input
   Number/signal type  2 composite video
2 S-video
4 RGBHV, RGBS, and component video (interlaced, progressive, or HDTV)
2 DVI-D digital video (single link)
   Connectors  2 female BNC (composite video)
2 female 4-pin mini DIN (S-video)
2 female 15-pin HD (RGB/component video)
2 female DVI-I (digital and analog signals are accepted)
   Nominal level  1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  0 V to 1.0 Vp-p with no offset
   Impedance  75 ohms
   Horizontal frequency  24 kHz to 100 kHz
   Vertical frequency  50 Hz to 120 Hz
   Resolution range  640 x 480 to 1920 x 1200*, 480p, 576p, 720p, 1080i, and 1080p, sampled pixel for pixel
Higher resolutions are accepted and undersampled.
     * Reduced blanking version
   Return loss  <-30 dB @ 5 MHz
   DC offset (max. allowable)  0.5 V
Video processing
   Decoder  10 bit digital
   Digital sampling  30 bit, 10 bits per color; 165 MHz standard
   Colors  1 billion
Video output
   Number/signal type  1 scaled RGBHV, RGBS, RGsB; Y, R-Y, B-Y
   Connectors  2 female 15-pin HD
1 female DVI-I (HDCP; only digital signal active)
   Nominal level  1 Vp-p for Y of component video and for G of RGsB
0.7 Vp-p for RGB and for R-Y and B-Y of component video
   Minimum/maximum levels  0 V to 0.7 Vp-p
   Impedance  75 ohms
   Vertical frequency  50 Hz, 60 Hz, or 75 Hz, depending on selected output resolution
   Scaled resolution  640x4801,2,3, 800x6001,2,3, 852x4801,2,3, 1024x7681,2,3, 1024x8521,2,3, 1024x10241,2,3, 1280x7681,2, 1280x8001,2, 1280x10241,2,3, 1360x7651,2,3, 1360x7681,2,3, 1365x7681,2,3, 1366x7681,2,3, 1365x10241,2,3, 1400x10501,2, 1440x9001,2,3, 1600x12001,2, 1680x10501,2, 1920x12001,2, 2048x10801,2,4,5,6,7,8,9, 480p2,9, 576p1, 720p1,2,6,7,8,9, 1080i1,2,9, 1080p1,2,4,5,6,7,8,9
1 = at 50 Hz, 2 = at 60 Hz, 3 = at 75 Hz, 4 = at 23.98 Hz, 5 = at 24 Hz, 6 = at 25 Hz, 7 = at 29.97 Hz,
8 = at 30 Hz, 9 = at 59.94 Hz
   Return loss  -21 dB @ 5 MHz
   DC offset  ±300 mV maximum with input at 0 offset
Sync
   Input type  RGBHV, RGBS, RGsB, bi-level or tri-level component video
   Output type  RGBHV, RGBS, RGsB; Y, R-Y, B-Y (bi-level or tri-level)
   Input standards  NTSC 3.58, NTSC 4.43, PAL, SECAM
   Input level  2.75 Vp-p to 5.0 Vp-p for RGBHV or RGBS
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB
   Output level  TTL: 5.0 Vp-p, unterminated
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB
   Input impedance  75 ohms
   Output impedance  75 ohms
   Polarity  Positive or negative (selectable)
Audio
   Gain  Unbalanced output: 0 dB; balanced output: +6 dB
   Frequency response  Fix and variable: 20 Hz to 20 kHz, ±0.5 dB
Direct (4/8 ohms): 20 Hz to 20 kHz, ±1.0 dB
   THD + Noise  Power amp: 0.01% at 1 kHz at nominal level (1 watt, 8 ohms load)
Variable: <0.11% at 1 kHz, 20 kHz bandwidth
Fixed: <0.025% at 1 kHz, 20 kHz bandwidth
   S/N  Power amp: 72 dB at 20 to 20 kHz
Variable: 90 dB at rated maximum output
Fixed: 90 dB at rated maximum output
   Crosstalk  -80 dB at 1 kHz, fully loaded
   Stereo channel separation  84 dB at 1 kHz
   Bass  ±10 dB at 100 Hz
   Treble  ±10 dB at 10 kHz
Audio input
   Number/signal type  10 stereo, unbalanced
   Connectors  (10) 3.5 mm 5-pole captive screw connectors (stacked)
   Impedance  >10k ohms unbalanced, DC coupled
   Nominal level  +4 dBu (1.23 Vrms), -10 dBV (316 mVrms)
   Maximum level  +10.4 dBu, (unbalanced) at 1% THD+N
   Input gain adjustment  -12 dBu to +12 dBu, adjustable to input
    NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Audio output
   Number/signal type  2 stereo or mono, balanced/unbalanced (1 fixed and 1 variable)
   Connectors  (2) 3.5 mm captive screw connectors, 5-pole
   Impedance  50 ohms unbalanced, 100 ohms balanced
   Gain error  ±0.1 dB channel to channel
   Maximum level (Hi-Z)  >+21 dBu, balanced at 1% THD+N
>+11 dBu, unbalanced at 1% THD+N
   Maximum level (600 ohm)  >+14 dBm, balanced at 1% THD+N
>+10 dBm, unbalanced at 1% THD+N
Audio output  — amplified (optional)
   Number/signal type  1 stereo or mono (2 channels total)
   Connectors  (1) 5 mm captive screw, 4-pole
   Minimum load impedance  4 ohms
   Continuous power with a full load  At 2, 4, or 8 ohms: 25 watts (rms) per channel
   Amplifier type  Improved Class D
   Damping factor  >30 (with a 4 ohm load)
Control/remote — decoder/scaler
   Serial control port  2 RS-232:
1 rear panel female 9-pin D connector
1 front panel 2.5 mm stereo mini jack
   IR remote control  IR 904 (optional)
30' maximum, 40 degrees off axis
General
   Power  100 VAC to 240 VAC, 50-60 Hz, 30 watts, internal
   Temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Fan, right to left as viewed from front panel
   Mounting
      Rack mount  Yes, with included brackets
   Enclosure type  Metal
   Enclosure dimensions  3.5" H x 17.5" W x 9.4" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 23.9 cm D)
(Depth excludes connectors and knobs. Width excludes mounting brackets.)
   Product weight  7.0 lbs (3.2 kg)
   Shipping weight  10 lbs (5 kg)
   Vibration  ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
   MTBF  30,000 hours
   Warranty  3 years parts and labor

Product Diagram
