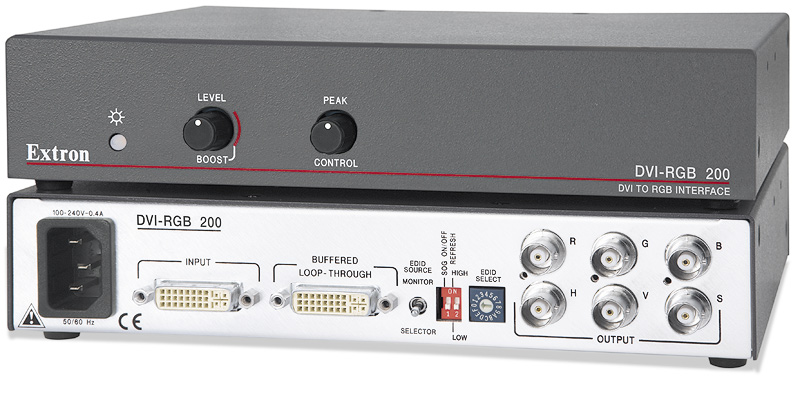

| DVI-RGB 200 |
DVI to Analog RGB Video Interface |
60-1064-01 |
| DVI-RGB 200 |
|
| Video |
|
| Video input and loop through |
| Number/signal type |
1 single link DVI-D digital video input
1 single link DVI-D buffered loop-through |
| Connectors |
1 female DVI-I (DVI input)
1 female DVI-I (DVI loop through) |
|
| Video output |
| Number/signal type |
1 RGBHV, RGBS, RGsB |
| Connectors |
6 female BNC |
| Level adjustment range |
-3 dB to 6 dB (x0.7 to x2) |
| Peaking adjustment range |
0 dB to 6 dB (x1 to x2) at 100 MHz |
| |
 |
| Output cable driving distance |
150' (45 m) at 1600 x 1200 with Extron MHR cable
250' (60 m) at 1024 x 768 with Extron MHR cable |
|
| Sync |
| Output type |
RGBHV, RGBS, RGsB |
|
| General |
| Power |
100 VAC to 240 VAC, 50-60 Hz, 25 watts, internal |
| Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling |
Convection, vents on sides |
| Mounting |
|
| Rack mount |
Yes, with an optional 1U deep rack shelf |
| Furniture mount |
Yes, with optional under-desk mounting kit or through-desk mounting kit |
| Enclosure type |
Metal |
| Enclosure dimensions |
1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
4.3 cm H x 22.1 cm W x 15.2 cm D
(Depth excludes connectors and knobs.) |
| Product weight |
1.6 lbs (0.7 kg) |
| Shipping weight |
4 lbs (2 kg) |
| Vibration |
ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety |
CE, c-UL, UL |
| Compliances |
CE, C-tick, FCC Class A, ICES, VCCI |
| MTBF |
30,000 hours |
| Warranty |
3 years parts and labor |
| Video |
| NOTE |
The DVI-RGB 200 converts a single link DVI signal to an analog RGB signal. | |
| NOTE |
Using an adaptor (the Extron HDMI to DVI-D adapter, part #26-616-01), the DVI-RGB 200 can accept HDMI signals. It converts HDMI digital RGB signals, but does not support the HDMI digital component (YCrCb) signal format. | |
| Resolution range |
Up to 1920x1200 or 1080p @ 60 Hz |
| Formats |
RGB |
| EDID |
Supports emulation of custom or factory preset Extended Display Identification Data (EDID) tables |
| Standards |
DVI 1.0 |
|
| Video input and loop through |
| Number/signal type |
1 single link DVI-D digital video input
1 single link DVI-D buffered loop-through |
| Connectors |
1 female DVI-I (DVI input)
1 female DVI-I (DVI loop through) |
|
| Video output |
| Number/signal type |
1 RGBHV, RGBS, RGsB |
| Connectors |
6 female BNC |
| Nominal level |
0.7 Vp-p for RGB |
| Level adjustment range |
0 dB to 6 dB (x1 to x2) |
| Peaking adjustment range |
0 dB to 6 dB (x1 to x2) at 100 MHz |
| Impedance |
75 ohms |
| Output resolution |
Follows input, determined by the local DVI loop-through monitor or by the selector on this product. |
| Return loss |
-35 dB @ 5 MHz |
| DC offset |
±5 mV maximum with input at 0 offset |
| Output cable driving distance |
150' (45 m) at 1600 x 1200 with Extron MHR cable
250' (60 m) at 1024 x 768 with Extron MHR cable |
|
| Sync |
| Output type |
RGBHV, RGBS, RGsB |
| Output level |
TTL (5 Vp-p, unterminated) |
| Output impedance |
75 ohms |
| Polarity |
Positive or negative (follows input) |
|
| General |
| Power |
100 VAC to 240 VAC, 50-60 Hz, 12 watts, internal |
| Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| Cooling |
Convection, vents on sides |
| Mounting |
|
| Rack mount |
Yes, with an optional 1U deep rack shelf |
| Furniture mount |
Yes, with optional under-desk mounting kit or through-desk mounting kit |
| Enclosure type |
Metal |
| Enclosure dimensions |
1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
4.3 cm H x 22.1 cm W x 15.2 cm D
(Depth excludes connectors and knobs.) |
| Product weight |
1.6 lbs (0.7 kg) |
| Shipping weight |
4 lbs (2 kg) |
| Vibration |
ISTA 1A in carton (International Safe Transit Association) |
| Regulatory compliance |
|
| Safety |
CE, c-UL, UL |
| Compliances |
CE, C-tick, FCC Class A, ICES, VCCI |
| Warranty |
3 years parts and labor |
| NOTE |
All nominal levels are at ±10%. | |
| NOTE |
Specifications are subject to change without notice. | |
| |
|
 |
|
|
|
| |
|
|
|
