Applications: |

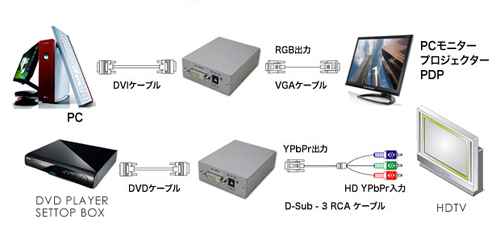

This converter box converts digital DVI-D to Analog PC/RGB or HD YPbPr output. It enables to connect the DVI sources to the analog PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. |
Features: |
- Supports DVI-D input and Analog PC/RGB or HD YPbPr output.

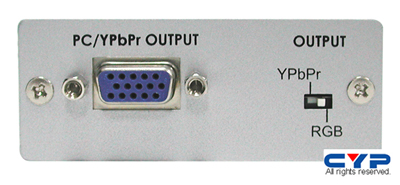

- Supports output selection between YPbPr and RGB.
- Supports input/output resolution as below:
PC: 640x480= VGA59 , VGA60, VGA72, VGA75, VGA85 800x600= SVGA56, SVGA60, SVGA72, SVGA75, SVGA85 1024x768= XGA60, XGA70, XGA75, XGA85 1152x864=MAC70, MAC75, MAC85 1280x1024= SXGA60, SXGA75, SXGA85, 1600x1200= UXGA60 1920x1200= WUXGA60(pixel-rate=154MHz) HD: 480I60, 576I50, 480P60, 576P50, 720P60, 720P50, 1080I60, 1080I50,1080P30, 1080P60, 1080P50 Note: 1. Due to the IC didn't support Tri-level synchronies output. So component output at 720p/1080i/1080p, the image will shift to the left side of the screen. 2. If DVI source includes HDCP(High-bandwidth Digital Content Protection), DVI display should not support HDCP decryption.
- Build in EDID.
| |
|
|
|
|
|
|
|
|
|
