Features

• Inputs: Six composite video, S-video, component video, or RGB; front panel input configurable for composite video, S-video, or RGB; seven stereo balanced/unbalanced audio inputs; front panel inputs include two RCA connectors for stereo audio and 3.5 mm mini stereo jack for PC audio

• Outputs: Two RGB outputs; two balanced/unbalanced audio outputs

• 350 MHz (-3 dB) RGB video bandwidth — Maintains signal integrity.

• Compatible with RGBHV, RGBS, RGsB, component video, S-video, and composite video signals

• Universal display control via RS-232 or IR — Via downloadable RS-232 or IR drivers, IR learning capabilities, or user-defined RS-232 commands.

• Scaled outputs for composite video, S-video, and component video inputs — RGB inputs are passed-through.

• Configurable room control function buttons — Room lighting, screen settings, and other device functions may be controlled via internal relays.

• IR remote learning capabilities

• Triple-Action Switching™ for RGB delay — Blanks the screen during switching to eliminate visible switching transitions.

• Balanced and unbalanced audio switching

• Quad standard video decoding — The System 7SC uses a digital, four-line adaptive comb filter to decode NTSC 3.58, NTSC 4.43, PAL, and SECAM for integration in systems all over the world.

• AFL™ - Accu-RATE Frame Lock technology — When video input and output refresh rates differ, there are certain points in time when the two rates cross over each other. The result is a glitch or image freeze on the display. AFL solves this problem by locking the output frame rate to the input frame rate.

• DMI™ - Dynamic Motion Interpolation technology — An advanced motion detection and compensation method used to deliver the best aspects of still and motion algorithms. This process results in a superior level of image enhancement capability with no loss of image fidelity.

• 3:2 and 2:2 pulldown detection

• Picture controls — Horizontal and vertical shift, color, tint, brightness, contrast, detail, sizing, and top and bottom vertical blanking adjustments are provided for each video input.

• Remote control capabilities with optional SCP 250 Secondary Control Panel or IR 701 Handheld IR Remote Control

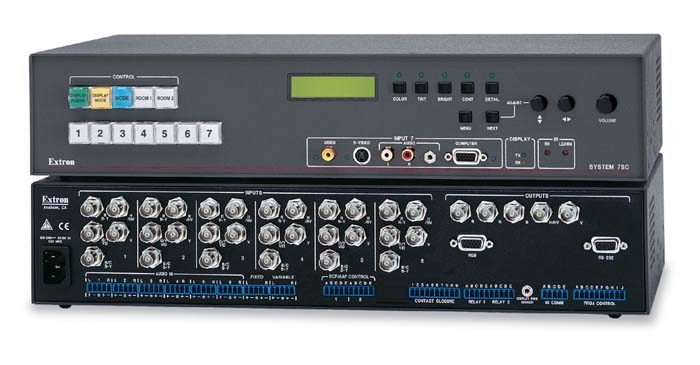

• 2U, full rack width metal enclosure — The System 7SC can be easily rack mounted with included brackets.

• Internal universal power supply — The 100-240 VAC, 50/60 Hz, international power supply provides worldwide power compatibility.
