- Inputs: Composite video on BNC, S-video on 4-pin mini DIN
- Outputs: Scaled RGB output on 15-pin HD
- Scales composite video and S-video sources
- 16 selectable RGB output rates from 640x480 to 1366x768
- Autoswitching between inputs
— The IN1502 can automatically switch between input sources upon detection of active sync signals.
- Frame rate conversion
— The IN1502 provides frame rate conversion of the incoming video signal to the selected output refresh rate.
- Quad standard video decoding
— The IN1502 uses a digital, four-line adaptive comb filter to decode NTSC 3.58, NTSC 4.43, PAL, and SECAM for integration into systems worldwide.
- DMI™ - Dynamic Motion Interpolation
— DMI technology is an advanced motion detection and compensation method used to deliver the best aspects of still and motion video.
- Picture controls for brightness, contrast, color, tint, detail, and horizontal and vertical positioning and sizing
- 3:2 NTSC and 2:2 PAL pulldown detection
— Advanced film mode processing techniques help maximize image detail and sharpness for NTSC or PAL sources that originated from film.
- LCD menu display
— Provides easy menu access and navigation for simplified set-up.
- Front panel security lockout
— This feature locks out all front panel functions except for input selection; all functions however, are available through RS-232 control.
- RS-232 serial and contact closure control port
— Using serial commands, the IN1502 can be integrated into control systems. Input selection can be controlled via contact closure.
- Optional IR 901 handheld IR remote control
— The optional Extron IR 901 Remote Control allows for input source switching, Image Freeze Control, and direct access to picture adjustments.
- Rack-mountable 1U, half rack width metal enclosure
- Internal universal power supply
— The 100-240 VAC, 50/60 Hz, international power supply provides worldwide power compatibility.

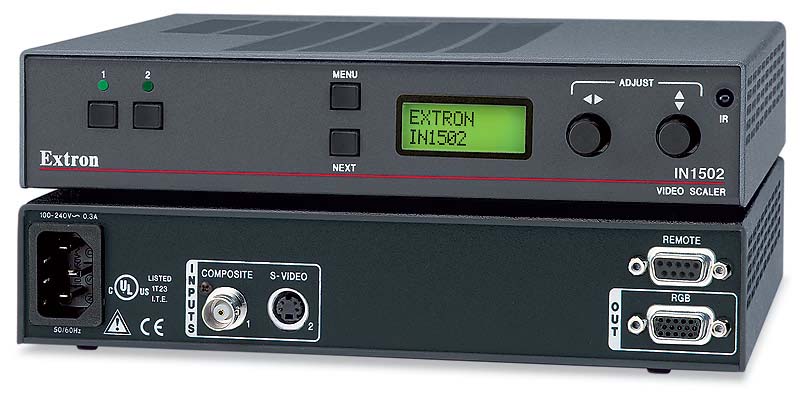

| IN1502 Video Scaler |
|
| Video input |
| Number/signal type |
1 S-video
1 composite video |
| Connectors |
(1) 4-pin mini DIN female (S-video)
1 BNC female (composite video) |
| Nominal level |
1 Vp-p for Y of S-video and for composite video
0.3 Vp-p for C of S-video |
| Minimum/maximum levels |
Analog: 0.0 V to 1.0 Vp-p with no offset |
| Impedance |
75 ohms |
| Horizontal frequency |
NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Vertical frequency |
NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Resolution range |
NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Return loss |
<-25 dB @ 5 MHz |
| DC offset (max. allowable) |
1.5 V |
|
| Video processing |
| Decoder |
9 bit digital |
| Digital sampling |
24 bit, 8 bits per color; 13.5 MHz standard |
| Colors |
16.78 million |
|
| Video output |
| Number/signal type |
1 scaled RGBHV, RGBS |
| Connectors |
1 female 15-pin HD |
| Nominal level |
0.7 Vp-p for RGB |
| Minimum/maximum levels |
0.0 V to 0.7 Vp-p |
| Impedance |
75 ohms |
| Scaled resolutions |
640x4801,2, 800x6001,2, 848x4801,2, 852x4801,2, 1024x7681,2, 1280x7681,2, 1360x7651,2, 1366x7681,2
1 = at 50 Hz, 2 = at 60 Hz |
|
| Sync |
| Output type |
RGBHV, RGBS |
| Standards |
NTSC 3.58, NTSC 4.43, PAL, SECAM |
| Input level |
0 V to 1.0 Vp-p |
| Output level |
TTL: 5.0 Vp-p, unterminated |
| Input impedance |
75 ohms |
| Output impedance |
75 ohms |
| Max. input voltage |
5 Vp-p |
| Max. propagation delay |
20 ns |
| Polarity |
Negative |
|
| Control/remote — decoder/scaler |
| Serial control port |
RS-232, 9-pin female D connector |
| Baud rate and protocol |
9600 baud, 8 data bits, 1 stop bit, no parity |
| Serial control pin configurations |
2 = TX
3 = RX
4 = input 1 select (contact closure)
5 = GND
6 = input 2 select (contact closure) |
| Contact closure |
9-pin female D connector (same as RS-232 connector) |
| Contact closure pin configurations |
See pins 4, 5, and 6 above. |
| IR controller module |
Extron IR 901 (optional) |
| Program control |
Extron's Simple Instruction Set (SIS™) |
|
| General |
| Power |
100 VAC to 240 VAC, 50/60 Hz, 30 watts, internal |
| Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing |
| Rack mount |
Yes, with optional 1U, 9.5" deep rack shelf, part #60-190-01 (RSU 129) or 60-604-01 (RSB 129) |
| Enclosure type |
Metal |
| Enclosure dimensions |
1.75" H x 8.75" W x 9.5" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 24.1 cm D)
(Depth excludes connectors and knobs. Width excludes rack ears.) |
| Product weight |
3.3 lbs (1.5 kg) |
| Shipping weight |
6 lbs (3 kg) |
| Vibration |
ISTA 1A in carton (International Safe Transit Association) |
| Listings |
UL, CUL |
| Compliances |
CE, FCC Class A, VCCI, AS/NZS, ICES |
| MTBF |
30,000 hours |
| Warranty |
3 years parts and labor |
 |
|
 |
|
|
|
| |
|
|
|
