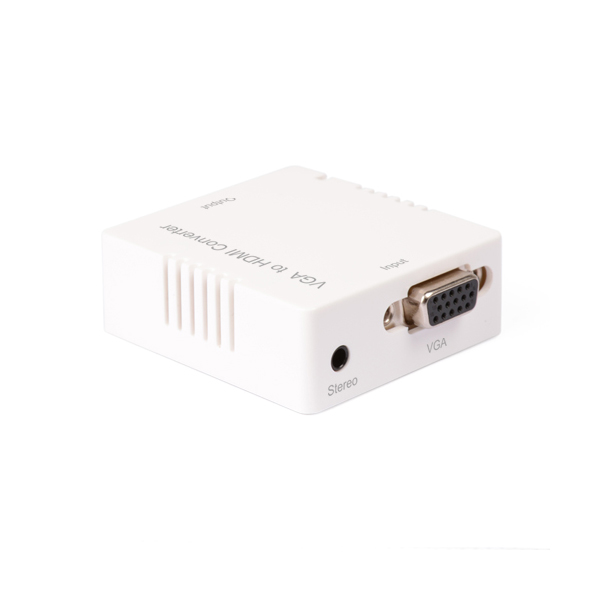

[14188]AVlogic VGA + 3.5ST to HDMI Converter / RGB + 3.5스테레오 to HDMI 영상컨버터 [ AVK312 ]
스   펙 :
제조사 :
수   량 :
판매가 : 99,800 원
적립금 : 0 원
100000이상 구매시 무료배송 납품/납기 견적요청은 전화주시기 바랍니다.
장바구니담기 바로주문하기
이전화면
AVlogic VGA to HDMI Converter RGB to HDMI 영상컨버터


Automatically check (AUDIO delay).
Support multiple color space:
Video output system: NTSC 3.58 / PAL (automatic).

  1. Connect the VGA video and stereo audio from the VGA source to this product. (Input cables are optional)
  2. Connect the HDMI output from this product to the HDMI source such as Monitor or Projector which has HDMI input.
  3. Connect the VGA and stereo audio output of this product to the VGA source if necessary.
  4. Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.
  5. Power on the VGA source and the HDMI source, choose the input of the HDMI source to its HDMI channel.
  6. The default resolution is 1080P, if you need to select the 720p resolution, can switch the resolution by inserting a thin needle into the 1080P/720P interface.


Signal Inputs/Output



Input Signal

VGA, Stereo

Output Video signal

HDMI 720p/1080p

VGA Resolution

640x480    60/72/75/85Hz
800x600    60/72/75/85Hz
1024x768   60/70/75/85Hz
1280x720   60Hz
1280x768 70/75/85Hz
1280x800   60/70/75Hz
1280x960   60Hz
1280x1024  60Hz
1440x900   60/75/85Hz
1920x1080  60Hz
1920x1200  60Hz
1920x1440  60Hz
Note: It’s possible that several resolutions are limited on a few displays

Operating Frequency



Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

1.65Gpbs/165MHz

Mechanical



Size(W-H-D)

60X56X21MM

Weight(Net)

44g

Warranty



Limited Warranty

1 Year

Environmental



Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 95 % RH (no condensation)

Power Requirement



External Power Supply

5V DC@2A

Power consumption (Max)

2W

Regulatory Approvals



Converter Unit

FCC,CE,

Power Supply

CE,FCC

Accessories Adapter



AC Power Adapter

US standard, UK standard and so on

User Manual



본 제품에 대한 구매전후 기술문의는 판매처가 아닌 아래 전용 기술지원사이트에서 이루어집니다.

구매처에 관계없이, 기술난이도가 높은 상품이므로 해당 사이트를 이용바랍니다.

http://avlogic.co.kr/ (기술지원 전용 홈페이지)
