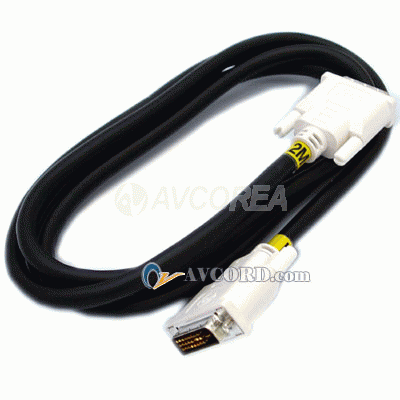

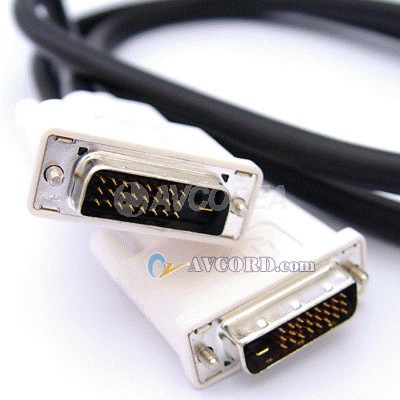

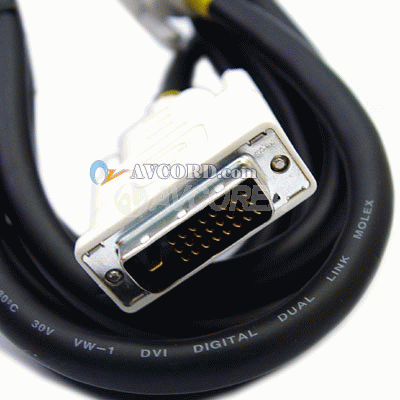

[12400] hot 몰렉스 DVI-D 듀얼 케이블(2M~3M) 2560 × 1600 지원 < |
|
|
|
|
|
| 100000이상 구매시 무료배송
납품/납기 견적요청은 전화주시기 바랍니다. |
|
|
|
|
 |
 |
|
|
 |
Technical Specifications
Pitch:
Main pin field 1.90mm (.075")
MicroCross Section 2.54mm (.100")
Design Configuration: Wire-to-Board
Orientation: Vertical and Right Angle
Termination: Through Hole
Circuit Sizes: 24 and 29
Electrical:
Current: 3.0A
Voltage: 40V
Temperature: -20 to +85 °C
Mechanical:
Insertion Force: 44.48N (10 lbs)
Withdrawl Force : 9.79N (2.2 lbs)
Physical:
Housing: Glass-filled thermoplastic, UL94V-0
Contact: Copper Alloy
Plating: Gold Flash or 30µ" Gold
Environmental:
Vibration/Shock: 10m W max.
Reference Information:
Packaging: Tray (Receptacle Header) and Bag (Cable Assemblies, Adapters and Hardware)
UL File No.: E29179
CSA File No.: LR 19980
|
|
 |
|
|
|
