[11173]EXTRON USP 405 DI/O [°¡°Ý¹®ÀÇ]
½º   Æå : USP 405 DI/O.Universal Signal Processor with SDI Input and Output
Á¦Á¶»ç : Extron (ÀͽºÆ®·Ð)
¼ö   ·® : °³
ÆǸŰ¡ : 0 ¿ø
Àû¸³±Ý : 0 ¿ø
100000ÀÌ»ó ±¸¸Å½Ã ¹«·á¹è¼Û ³³Ç°/³³±â °ßÀû¿äûÀº ÀüÈ­Áֽñ⠹ٶø´Ï´Ù.
Àå¹Ù±¸´Ï´ã±â ¹Ù·ÎÁÖ¹®Çϱâ
ÀÌÀüÈ­¸é
»õ ÆäÀÌÁö 1 »õ ÆäÀÌÁö 1 The Extron USP 405 Universal Signal Processor is the one box solution for all video signal conversion needs. It is an all-in-one, high-performance scaler, scan converter, transconverter, format converter, switcher, and transcoder. The USP 405 accepts a wide range of video signal formats, processes them, and outputs them all in one format directly to a digital display, projector, or editing device. The applications for the USP 405 include rental and staging environments, boardrooms, conference rooms, classrooms, auditoriums, and much more.

The USP 405 is especially useful for upconverting or downconverting video and computer-video. It can convert HDTV, component video, S-video, NTSC and PAL composite video, RGB, and optional SDI - Serial Digital Interface into a single video format — all while maintaining maximum image quality. RGB signals that are input into the USP 405 can be scaled to one of 41 output resolutions, or scan converted to component video, S-video, NTSC and PAL composite video, and SDI. Video signals that are input as component, S-video, composite, and SDI can be transcoded by the USP 405 and output through all video connectors simultaneously. These video signals can also be scaled to one of 41 resolutions and output on 15-pin HD and BNC connectors.

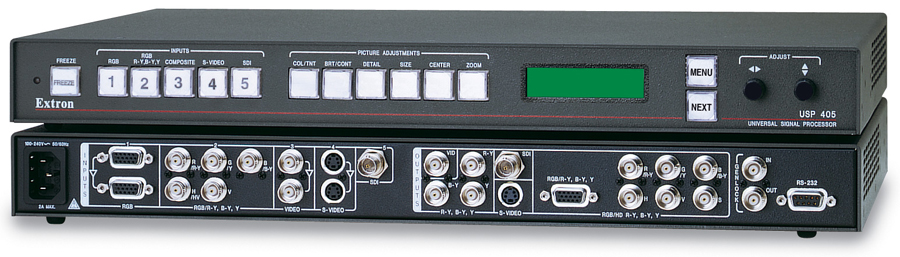

There are five video inputs on the USP 405, including optional SDI input, accessible through the rear panel: one female 15-pin HD connector for RGB with a buffered local monitor output; five female BNC connectors for RGB, HDTV/component video, S-video, or composite video; one 4-pin mini DIN for S-video with a buffered loop-through; one female BNC for composite video with a buffered loop-through; and one female BNC for the optional SDI video.

The USP 405 has six video outputs, including optional SDI output, also on the rear panel: one female 15-pin HD connector and five female BNC connectors for RGB and HDTV/component video; three female BNC connectors for component video; one 4-pin mini DIN for S-video; one female BNC connector for composite video; and one female BNC connector for the optional SDI video.

To maximize the quality of the output image, the USP 405 features several Extron proprietary video processing technologies: DMI¢â - Dynamic Motion Interpolation, 3:2 NTSC and 2:2 PAL pulldown detection, and the patented AFL¢â - Accu-RATE Frame Lock.

The USP 405 is available in two configurations: the standard USP 405, and the USP 405 DI/O with SDI input and output. This universal signal processor comes with an easy-to-read LCD menu and back-lit, tactile buttons to simplify operation and control. It can also be controlled by IR remote with the optional Extron IR 801.

¡¡

Features

USP 405 Universal Signal Processor
Video
Gain Unity
Crosstalk -50 dB @ 5 MHz
Video input
Number/signal type 1 RGBHV/RGBS/RGsB computer video with 1 local monitor loop-through
1 RGBHV/RGBS/RGsB, RGBcvS computer video, component video (Y, R-Y, B-Y), S-video, or composite video
1 S-video
1 composite video
1 SDI (optional)
Connectors (2) 15-pin HD female: RGB computer video input and loop-through
1 x 5 BNC female: RGB computer video, component video, S-video, or composite video input
2 BNC female: composite video input and loop-through
(2) 4-pin mini DIN female: S-video input and loop-through
1 BNC female: optional SDI digital component video input
Nominal level 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum/maximum levels Analog: 0.3 V to 2 Vp-p with no offset
Impedance 75 ohms
Horizontal frequency
Input 1 24 kHz to 100 kHz
Input 2 RGB, HD component video
24 kHz to 100 kHz
Input 2 RGBS, RGBcvS, component video, S-video, composite video
15 kHz
Inputs 3 & 4 15 kHz
Input 5 CCIR 601/ITU‑R BT.601 (270 Mbps)
Vertical frequency 30 Hz to 120 Hz
Resolution range Autoscan 640 x 480 to 1600 x 1200
Return loss <-30 dB @ 5 MHz
DC offset (max. allowable) 0.5 V
External sync (genlock) 0.3 V to 1.0 Vp-p
Video processing
Decoder 9 bit digital
Encoder 10-bit digital
Digital sampling 24 bit, 8 bits per color; 140 MHz
Colors 16.78 million
Horizontal filtering 8 levels
Vertical filtering 8 levels
Video output
Number/signal type 6 RGBHV, RGBS, component video (Y, R-Y, B-Y), optional SDI digital component video (CCIR 601/ITU‑R BT.601), S-video, composite video
Connectors 1 x 6 BNC female (RGB, HD component video)
(1) 15-pin HD female (RGB, HD component video)
3 BNC female (component video)
(1) 4-pin mini DIN (S-video)
1 BNC female (composite video)
1 BNC female (optional SDI digital component video)
Nominal level 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum/maximum levels 0 V to 2.0 Vp-p
Impedance 75 ohms
Scaled resolutions 640x4801,3,4,6, 800x6001,3,4,6, 832x6243,4,6, 848x4803,6, 852x4803,6, 1024x7681,3,4,5,6, 1280x7682,6, 1280x10241,3,6, 1360x7653,6, 1365x10243,6, 1400x10501,3,6, 576p1,6, 720p3,6, 1080p3,6, 1080i1,3,6, NTSC, PAL
1 = at 50 Hz 2 = at 56 Hz 3 = at 60 Hz 4 = at 75 Hz 5 = at 85 Hz
6
= locked to the current input's vertical refresh rate (up to 60 Hz) (Accu-RATE Frame Lock)
Return loss -30 dB @ 5 MHz
DC offset These data are for output with input at 0 offset:
¡¾25 mV maximum for RGB
350 ¡¾25 mV maximum for Y of component video/S-video, composite video
650 ¡¾25 mV maximum for R-Y & B-Y of component video, C of S-video
Switching type Triple-Action
Sync
Input type Autodetect RGBHV, RGBS, RGsB
Output type RGBHV, RGBS
Standards NTSC 3.58, NTSC 4.43, PAL, and SECAM
Input level 0 V to 5 Vp-p
Output level 0 V to 5 Vp-p, unterminated
Input impedance 510 ohms
Output impedance 75 ohms
Max input voltage 5 Vp-p
Polarity Positive or negative (selectable)
Control/remote — switcher/scaler
Serial control port RS-232, 9-pin female D connector
Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configurations 2 = TX, 3 = RX, 5 = GND
Contact closure 9-pin female D connector
Contact closure pin configurations 1 = input 1, 4 = input 2, 6 = input 3, 7 = input 4, 8 = input 5
IR controller module IR 801 (optional)
Program control Extron's control/configuration program for Windows¢ç
Extron's Simple Instruction Set (SIS¢â)
General
Power 100 VAC to 240 VAC, 50/60 Hz, 30 watts, internal, autoswitchable
Temperature/humidity Storage: -40 to +158 ¡ÆF (-40 to +70 ¡ÆC) / 10% to 90%, noncondensing
Operating: +3 to +122 ¡ÆF (0 to +50 ¡ÆC) / 10% to 90%, noncondensing
Rack mount Yes
Enclosure type Metal
Enclosure dimensions 1.8" H x 17.5" W x 12" D (1U high, full rack wide)
4.6 cm H x 44.4 cm W x 30.5 cm D
(Depth excludes connectors and knobs. Width excludes rack ears.)
Product weight
USP 405 6.3 lbs (2.9 kg)
USP 405, SDI input 6.4 lbs (2.9 kg)
USP 405, SDI output 6.5 lbs (2.9 kg)
USP 405, SDI in & output 6.9 lbs (3.1 kg)
Shipping weight
USP 405 w/SDI in & output 12 lbs (6 kg)
All other models 11 lbs (5 kg)
DIM weight (international) 12 lbs (6 kg)
Vibration ISTA 1A in carton (International Safe Transit Association)
Listings UL, CUL
Compliances CE, FCC Class A
MTBF 30,000 hours
Warranty 3 years parts and labor
